ASUS DSL-N12E

ASUS DSL-N12E ADSL WL N ROUTER

ASUS DSL-N12E ADSL WL N ROUTER

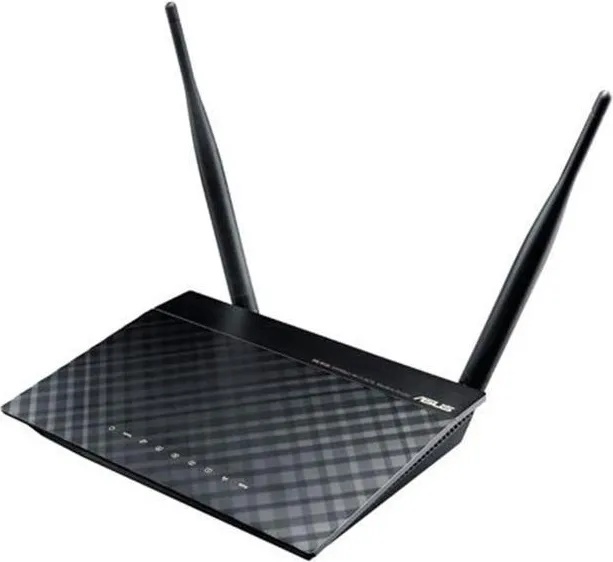

ASUS DSL-N12E Wireless-N300 ADSL Modem Router

Network Standard
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u, IPv4

Product Segment
N300 complete networking; 300Mbps

Wi-Fi Data Rate
802.11b : 1, 2, 5.5, 11Mbps
802.11g : 6,9, 12,18, 24,36, 48,54Mbps
802.11n : up to 300Mbps

xDSL Data Rate
G. 992.1 (T1.413)
G. 992.2 (G. dmt), G. lite
G. 992.3 (G. bis/ADS L2)
G. 992.5 (ADSL2+)
Annex L (reach extended ADSL2)

Antenna
Fixed 2 or 5 dBi antenna x 2
*Antenna signal power may vary by region due local regulations and requirements

LED Indicator
Power, ADSL, Internet, WLAN, LAN x 4

Button
WPS Button, Reset Button, Power Button

Ports
1 x RJ11 for ADSL
4 x RJ45 for 10/100 BaseT for LAN

Operating Frequency
2.4GHz

Operation Channel
11 for N. America
13 Europe (ETSI)

Security
64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, Radius with 802.1x, WPS support

Management
Web-based GUI configuration
Firmware upgraded, configuration data uploaded and downloaded via Web-based GUI
Configuration backup and restore
Diagnostics
Log & Trace function

Power Adapter
AC Input : 100 ~240 V(50~60HZ)
DC Output : 12 V/0.8 A

Certificates
CE

Dimensions
168 x 124 x 30 mm (WxDxH)

Weight
300 g (Device Only)

Environmental
Operating Temperature: -10 °C to 50 °C (14 °F to 122 ?F)
Storage Temperature: -40 ° to 60 ° C (-40 °F to 140 °F)
Operating Humidity: 5 % to 95 % (Non-condensing)
Storage Humidity: 5 % to 95 % (Non-condensing)

OS Support
Windows 8 , 32bit/64bit
Windows 7 , 32bit/64bit
Windows Vista , 32bit/64bit
Windows XP , 32bit/64bit
Mac OS X
Linux

Package Content
DSL-N12E Wireless ADSL modem Router
Power adapter
Support CD (user manual, QSG)
RJ45 cable
RJ11 cable
Quick Start Guide
Warranty card

www. asus. com

The specification and pictures are subject to change without notice.



.
